Cleveron 403 is an indoor parcel robot for smaller format stores. The robot can handle 25-200 parcels per day.
Cleveron 403 is designed for
companies with smaller format stores, whose daily parcel volumes remain under
200 parcels. Cleveron 403 is a self-service automated pickup point for click and collect orders,
offering a seamless omnichannel shopping experience for the end-user.
What is it?
Cleveron 403 is an ideal starting point for BOPIS (buy
online pick up in-store) and offers a space- and time-efficient alternative to
traditional parcel lockers.
The 403 provides multiple ways of monetization
– click and collect
pickup, returns, slot reservation and a “vending machine” functionality.
effective use of retail space is used for measuring the key performance metrics
of a store, making it essential to fit as many parcels onto as little space as
possible. Cleveron 403 is a robotic solution, which enables to store hundreds
of parcels on a minimal amount of space. Additionally, thanks to the compact
size of the parcel robot, the installation and deployment process is very quick
Four size options
Cleveron 403 is available in four sizes - 4 × 2 metres, 4
× 2.5 metres, 6 × 2.5 metres and 9
× 2.5 metres, with a depth of just 1.5 metres. The compact size makes it easy to install in buildings with low ceilings or narrow corridors.
can be installed using only manpower, with no extensive remodelling needed. This
decreases installation costs and allows the retailer to start the click and collect automation process very quickly.
How does it work?
- The courier or a shop associate scans
the parcel’s code at the user console
- Cleveron 403 brings a tray to the user
console. The courier places the parcel onto the tray
- Cleveron 403 automatically measures
the parcel's height
- Cleveron 403 stores the parcel on a
shelf. For maximum capacity, Cleveron 403 allocates the exact amount of space
needed for the specific parcel
- The end-user gets notified that their
order is ready and receives the pickup code
- The end-user arrives at the parcel robot
and inserts or scans the pickup code at Cleveron 403
- Cleveron 403 issues the parcel to the
end-user within seconds
- The end-user can later return the
parcel to the Cleveron 403 with ease
Where can Cleveron 403 be used?

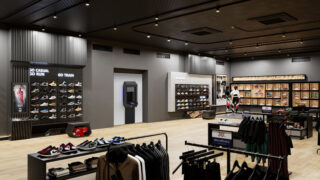

On the shop floor
Boost foot traffic, additional sales and impulse purchases
In a mall corridor
Provide a click and collect service for many businesses at once
In a warehouse
Streamline the inventory process and avoid losing small merchandise in the warehouse
In subway or railway stations
Provide parcel pickup in easy-to-reach locations
The benefits of Cleveron 403
Cleveron 403 is designed to be the most efficient
click and collect parcel automation option for small spaces.
1. Saves space – both inside and outside the robot
To reach maximum space efficiency, the parcel robot can be integrated into the wall.
Cleveron 403 continuously adjusts parcel locations inside the robot according to height, making sure that no space is wasted and to reach maximum parcel density within the machine.
2. Saves time both for the end-users and couriers/shop associates
Cleveron 403 issues a parcel starting from under 10 seconds. Fast loading saves time for couriers or store associates, who can scan and insert parcels quickly from one location.
3. Multiple ways to monetize
Cleveron 403 can be used to automate click and collect pickups, returns, store goods in the warehouse or to be used as a vending machine.
starting point for click and collect parcel automation
The parcel robot is optimal for automated parcel delivery market entrants,
whose daily parcel volumes have not surpassed 200+ parcels.
5. Scalable solution
When a retailer outgrows Cleveron 403, it would be easy to upgrade to
Cleveron 402, which is meant for high-volume parcel automation and can hold up
to 3,600 parcels
6. Adaptable software
Cleveron 403 works on Cleveron’s
software which allows the owner
to manage their parcel robots conveniently. It is easily integrated through
a public API.
7. Full service
Cleveron is your full-service partner. We take care of the
installation process, offer maintenance for all our products and support from
our remote and on-site teams.
Cleveron 403 differ from a parcel locker?
Cleveron 403 is more ergonomic for couriers, store associates and
end-consumers because all parcels go in and out from one location, placed at a
Having one user console also means that couriers or store associates can
complete the parcel loading task faster. Instead of walking back and
forth between the user console and individual locker doors, all parcels are
inserted from one door. Customers will also receive their goods from a convenient
height, without having to reach up high to retrieve a heavy parcel.
with 342 parcels
with 342 doors
|Walking distance |
to load 342 parcels
|All parcels loaded |
through one door,
no walking required
Smaller footprint and service area
Despite being approximately the same height as a parcel locker, Cleveron
403 has a considerably smaller service area, utilizing 1.5 times less amount of space than a parcel locker, which can hold the same amount of parcels. When
integrated into the wall, Cleveron 403 uses 10 times less amount of space than
a regular parcel locker. That’s because customers won’t need to access individual
doors that are placed along the frontside of a regular parcel locker.
with 342 parcels
with 342 doors
(including service area)
In addition to requiring less space, the parcel robot stores more
parcels per square meter than a traditional APM, maximizing the use of expensive
Reduces the possibility of loading- and pickup-related issues
reduces the number of errors that may occur upon loading. Cleveron 403 measures
each parcel upon insertion and stores the parcel according to its height,
whereas a regular parcel locker has drawers with set sizes and no automated
measurement system. The associate or courier has to scan the parcel and then
choose the appropriate locker size. This means that a mistake in the manual
measurement process may result in damaging the packaging or the product itself
by placing a parcel into a locker that is too small.
Maximizes the use of space
Since Cleveron 403 automatically measures each parcel upon insertion, it is able to allocate the exact amount of needed for the parcel.
With a regular APM, when all other lockers are occupied, the courier has no other option than to place a small item in a large locker, which wastes a lot of space. Vice versa, when all big lockers are full, the courier cannot insert a large parcel, even though the machine could be half empty.
W4H2 .5 ||Cleveron 403
|Average no. of parcels|
With an average parcel height of 110 mm
| 100|| 125|| 200|| 300|
no. of parcels
Parcel height of 50 mm
|157|| 214||342|| 534|
no. of parcels
Parcel height of 400 mm
|25|| 32||52|| 82|
|Maximum parcel weight||20 kg|| 20 kg||20 kg||20 kg
|Maximum parcel dimensions||60 × 40
× 40 cm||60 × 40
× 40 cm
||60 × 40
× 40 cm
60 × 40
× 40 cm
|Width||4 m||4 m
||6 m||9 m|
|Depth||1.5 m||1.5 m
||1.5 m||1.5 m|
|Height||2 m||2.5 m
||2.5 m||2.5 m|
Cleveron 403 is available in four sizes. We can help you choose the right model based on your parcel volumes and space requirements. Contact us for more information.
Cleveron 403 is operated by Cleveron's
is a cloud-based software which is easily integrated with any backend system by Public API protocol.
Cleveron is a full-service partner. We offer
full life-cycle support for our Cleveron 403 solution worldwide.
- Hardware installation
- Software integration
- Remote monitoring
- On-site maintenance
- Spare parts
- Business performance data
- Research & development
Our support also includes worldwide on-site maintenance. On-site maintenance is carried out by our certified partner at the client's destination country. Cleveron provides continuous training and certification of service technicians, as well as spare parts management and logistics.
Our support includes a remote technical monitoring service to optimize the system's performance and minimize downtime. The main advantage of remote technical monitoring is that it enables to detect and solve 80% of hardware and software related issues from a distance. That translates to fast problem-solving and low maintenance costs.
